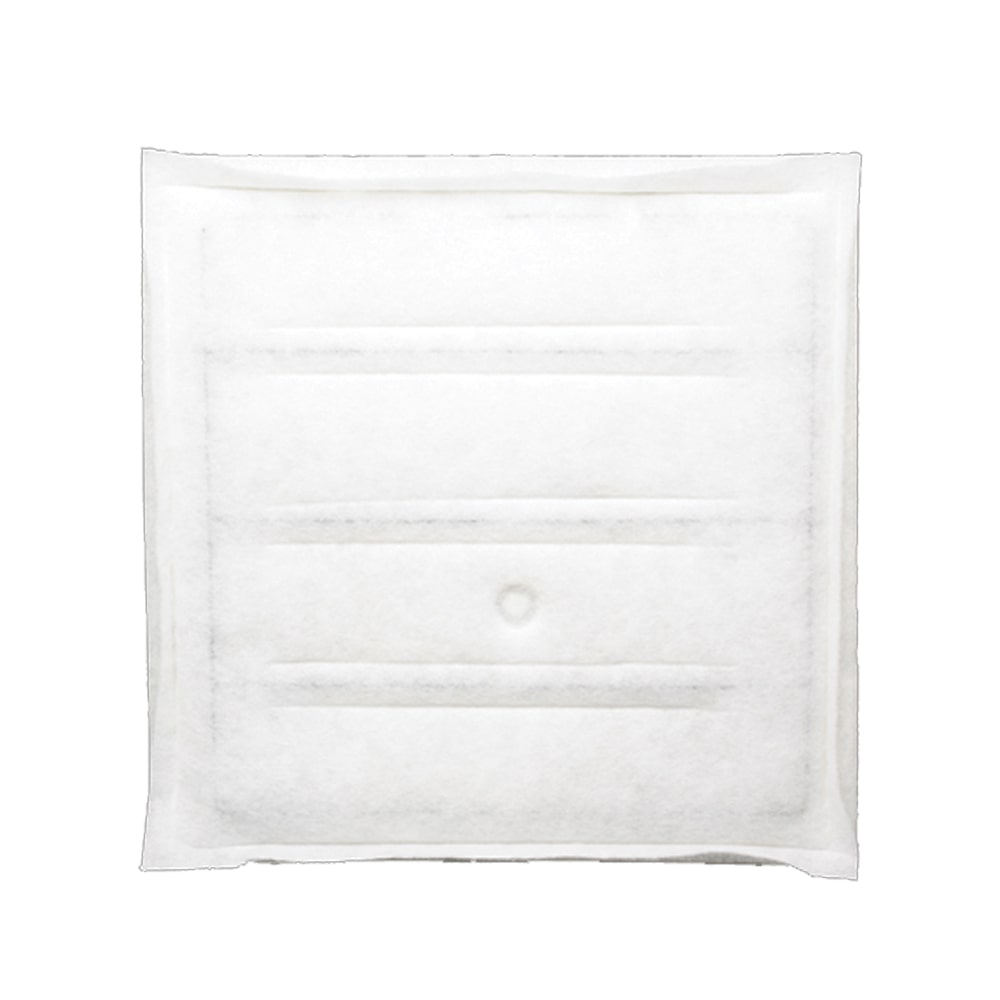

AR-1 Panels and Links (MERV 8)

Constructed from premium synthetic polyester resin, the AR-1 features a progressive-density media structure with thermally bonded fibers to eliminate fiber migration. A proprietary tackification treatment uniformly coats all media fibers, ensuring superior capture and retention of particulates. The filter is a dry viscous air intake filter designed for heating compartments that removes 100% of visible atmospheric dust particles and 90% of 5 micron particles.

Available in stock sizes:

20″x20″-20pads

20″x25″-20pads 24×24″-20pads

20″x48″-8pads

20″x48″-10pads

20″x50″-8pads

20″x50″-10pads

16″x20″-20pads

16″x25″-20pads

If you are unable to find your required size or have any other questions,  Please contact us.


Application

  • Adhesive-treated media traps particles
  • 100% RH resistance prevents media degradation
  • High-density composite pre-filtration for incoming air
  • Progressive media structure for optimal particle retention
  • Self-sealing gaskets & wire frames eliminate bypass and dust entry
  • Available in single panels and linked panels
  • Filtration Rating :MERV 8(ISO 16890 F7)
