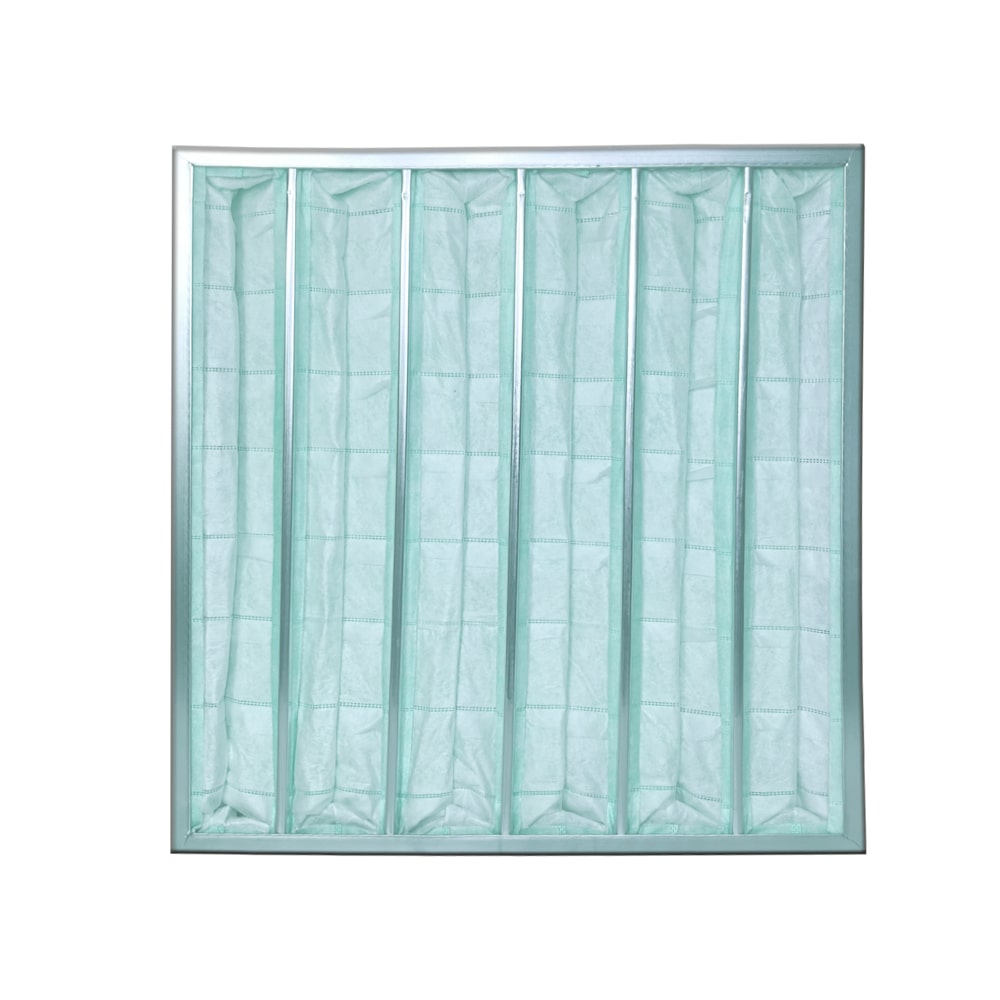

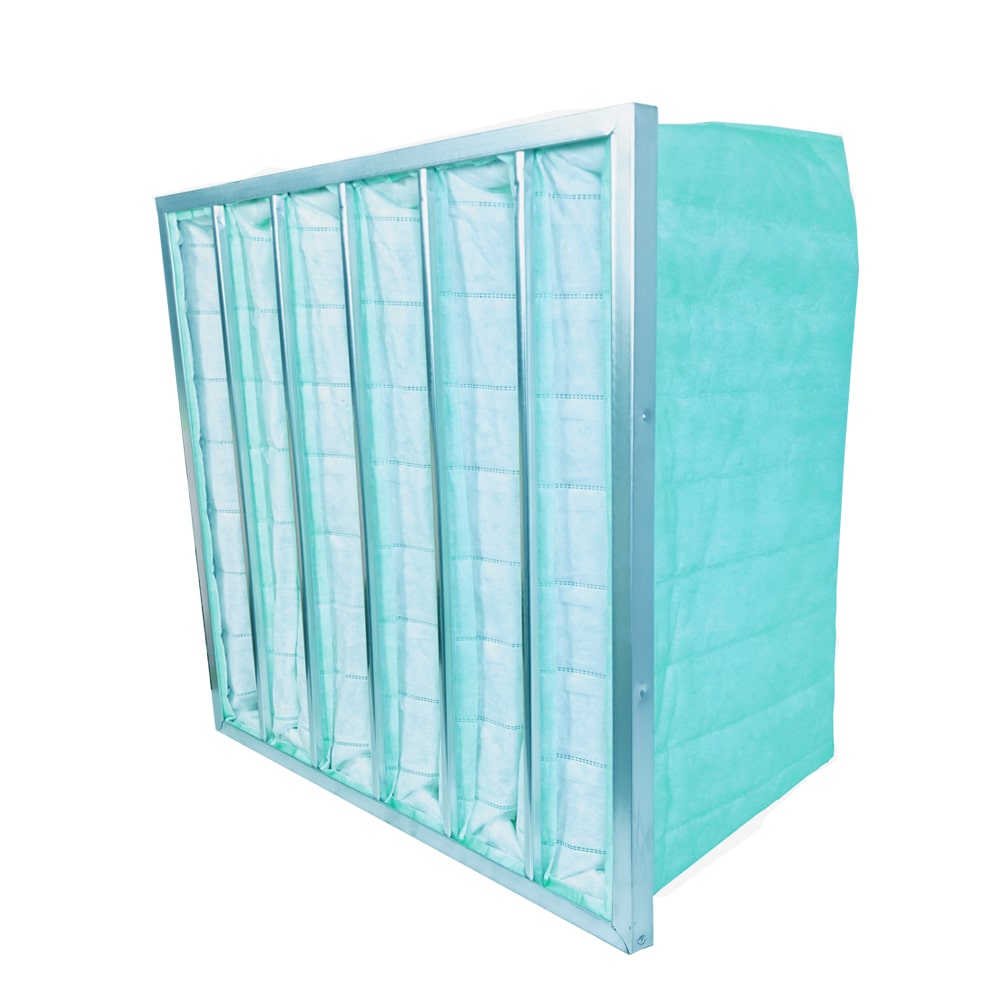

MERV 11 Synthetic Pocket Filter

Pocket filters are employed in HVAC systems to enhance the indoor air quality in auto shops, data centers, food and beverage plants, industrial locations, and schools.

These filters are appropriate for scenarios where air is consistently flowing through the filter as they might deposit some captured substances back into the air current when they deflate. Pocket air filters are directionally specific and should be installed with their pockets positioned vertically. This restricts the redistribution of trapped particles in case the filters deflate.

Available in stock sizes:

20″x20″x12″(5Pkt./2PCS)

24″x12″x12″(4Pkt./2PCS)
24″x20″x12″(5 Pkt./2PCS)

24″x24″x12″(8Pkt./2PCS)

24″x24″x22″(8 Pkt./2PCS)

If you are unable to find your required size, custom pocket filters are available.   Please contact us.




Application

  • MERV 11 pocket air filters capture 60% to 70% of particles sized between 0.3 and 1 microns (lead dust, humidifier dust, coal dust, and nebulizer droplets)
  • Low initial pressure drop, outstanding dust holding capacity and prolonged service life
  • High-performance synthetic media generates dual-stage filtration to boost depth loading
  • Thermoplastically sealed stitch lines
  • Assembled with a non-corrosive, galvanized frame (actual frame width is 7/8″; designed to be inserted into a 1″ track / holding frame)
  • Extensive offering of widths, lengths, depths and pockets
  • Custom sizes are available upon request
